特色

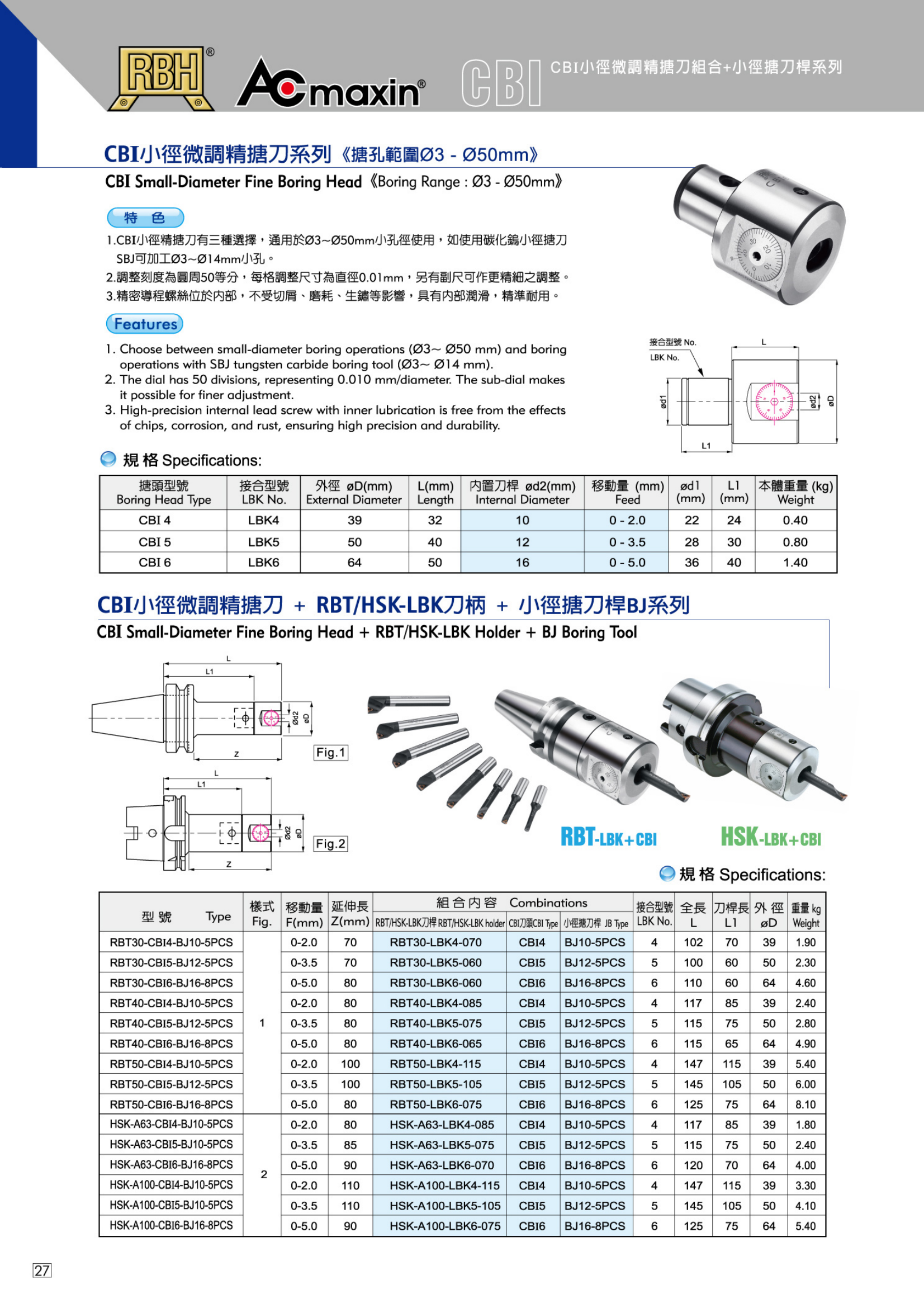

1.CBI小徑精搪刀有三種選擇，通用於∅3~∅50mm小孔徑使用，如使用碳化鎢小徑搪刀SBJ可加工∅3~∅14mm小孔。
2.調整刻度為圓周50等分，每格調整尺寸為直徑0.01mm，另有副尺可作更精細之調整。
3.精密導程螺絲位於内部，不受切屑、磨耗、生鏽等影響，具有内部潤滑，精準耐用。
Features
1.Choose between small-diameter boring operations (∅3- ∅50 mm) and boringoperations with SBJ tungsten carbide boring tool (∅3~ ∅14 mm).
2. The dial has 50 divisions, representing 0.010 mm/diameter. The sub-dial makesit possible for finer adjustment.
3. High-precision internal lead screw with inner lubrication is free from the effectsof chips, corrosion, and rust, ensuring high precision and durability.
